Model LU5

**Not Available for Production Orders**

Supported in the Aftermarket for Parts and Replacement Only

The LU5 Ramp assembly is a self contained modular unit. The LU5 Ramp assembly is mounted beneath the vehicle floor at the vehicle’s entryway, concealed from view until ramp is deployed.

RAMP SPECIFICATIONS

  • Width at ramp surface:
    minimum width – 31.31″
    maximum width – 44.31″
  • Load Capacity 600 pounds
  • Power Requirements 24 VDC
  • Cycle Time:
    Deploy 8 to 10 seconds
    Stow 8 to 10 seconds

RAMP FEATURES

  • Passive Design – Automatic (no manual manipulation)
  • Steel Construction
  • Enclosures are stainless steel
  • Portions that are manufactured from mild steel are electrostatically powder coated.
  • Electrically Powered (No Hydraulics)
  • Model LU-5 complies with the American with Disabilities Act (ADA) and the Federal Transit Administration Guidelines

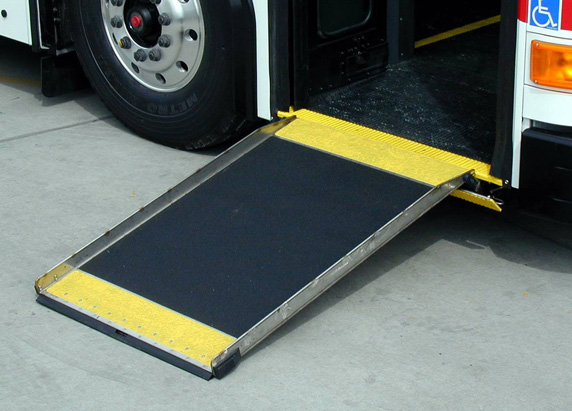

Slide-Out Ramp | Model LU5
